Aspen Pittman Designs DT-1 Dual Top Condenser Mic

The Ultimate 4-in-1 Microphone for Studio & Stage

The Aspen Pittman Designs DT1 Microphone, with its unique “Dual Top” design, is a versatile high-definition condenser microphone perfect for both vocals and instruments. Ideal for stage and studio alike, it captures incredible detail with the signature Aspen Pittman warm tone.

Unmatched Versatility

The DT1 Microphone is a ball-end, handheld true condenser vocal mic that enhances vocal detail on live stages. For added flexibility, the ball end pop filter can be removed, transforming it into a mid-sized, stainless steel top-firing mic perfect for instruments like guitars and drums. Its dual-purpose design makes it an essential tool for any artist or engineer needing a microphone that seamlessly switches from stage to studio.

Key Features

• High-quality true condenser capsule optimized for both critical vocal and instrument recording, with reduced sensitivity to feedback and handling noise for live performance.

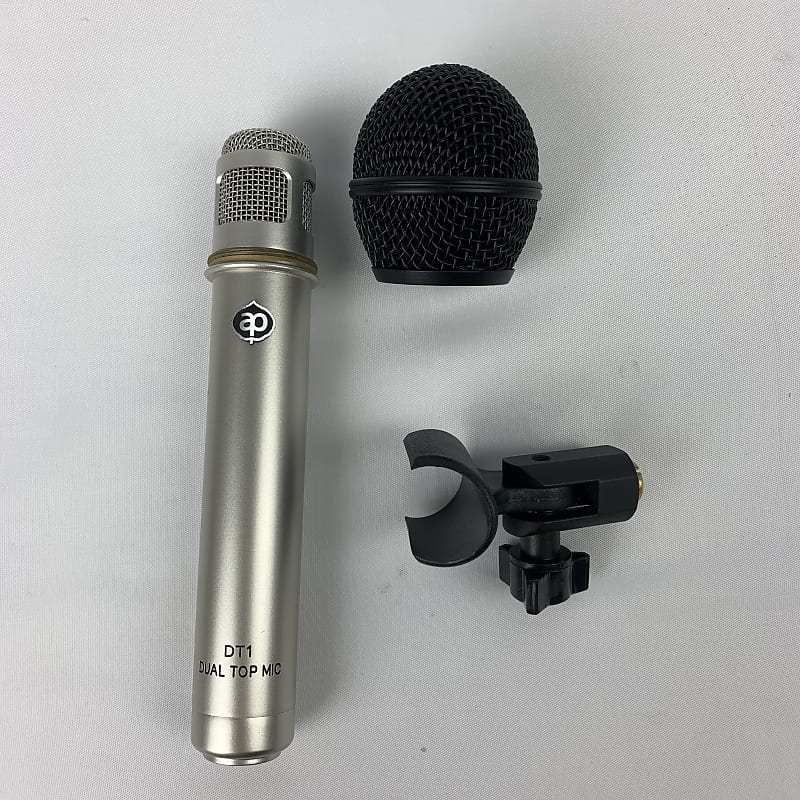

• Removable spring steel ball top for dual-purpose use: condenser mic for vocals or instrument mic when the ball end is removed.
• Proprietary mid-sized 0.83" (21 mm) brass capsule with a 0.75" (19 mm), 6-micron, 24k gold evaporated mylar diaphragm for high-definition audio capture.
• Durable design with a rubber-isolated capsule assembly, robust enough for touring use.
• Includes an HM2 swiveling hard mount and a vinyl zipper case for easy transport and setup.

Specifications

• Preamp Topology: Low-noise FET
• Polar Pattern: Fixed Hyper-cardioid
• Frequency Response: 20Hz – 18kHz, ±1.5dB
• Max SPL: 146dB for 1% THD
• Equivalent Noise: 28dB SPL
• Sensitivity: SmV/Pa
• Output Impedance: 200Ω, transformerless
• Power Requirement: 48V phantom power
• Dimensions: 7.5" (19 cm) length, 0.85" (2.1 cm) max diameter
• Weight: 12 oz. (0.4 kg)

Whether capturing vocals or instruments, the Aspen Pittman APDDT1 “Dual Top” Microphone is designed to deliver unparalleled clarity and versatility, making it an exceptional choice for professionals.
