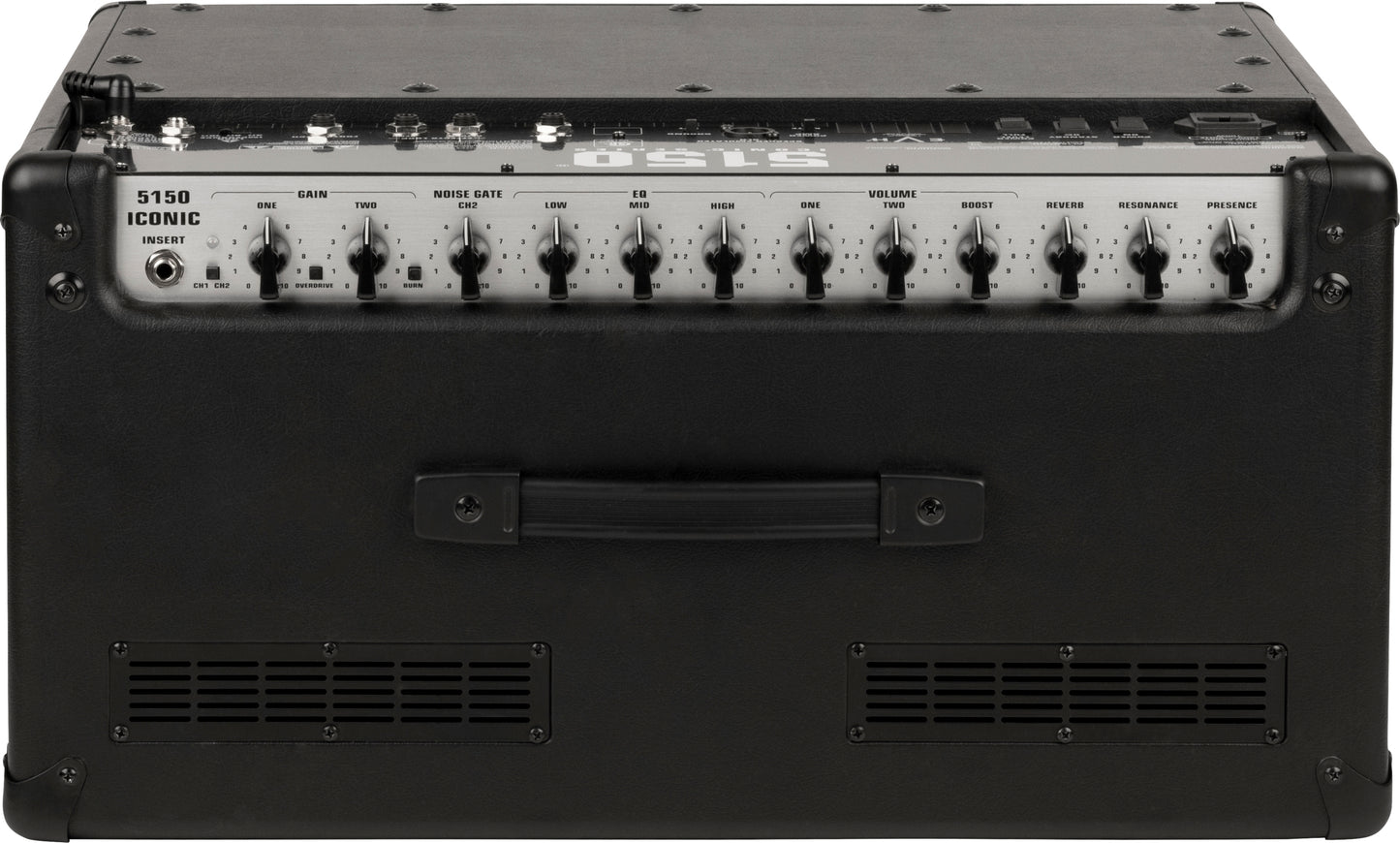

EVH 5150 Iconic Series 40-watt 1 x 12-inch Tube Combo Amp

The EVH 5150 Iconic Series satisfies the needs of gigging and recording guitarists craving that powerful EVH tube tone, but at a more affordable price. Evolving from the revered EVH 5150III amplifiers, the Iconic Series delivers the searing sound and growling gain that Eddie Van Halen made famous throughout his groundbreaking career.

Designed by renowned amp engineer, James Brown, the 5150 Iconic Series 40-watt 1x12 combo is powered by two 6L6 power tubes and voiced by a complex, multi-stage hybrid preamp section anchored by a duet of ECC83 tubes providing all the fire power the modern guitarist needs. The cabinet is constructed out of MDF with special internal plywood baffling for tight and increased bass response, and houses a custom designed EVH 12" Celestion speaker voiced specifically for this preamp circuit, so that the pristine cleans and searing high gain tones are tight, clear and articulate.

Features

• Amplifier Type: Tube
• Controls:
  • Channel 1: Gain w/ Overdrive Switch
  • Channel 2: Gain w/ Burn Switch
  • Noise Gate (Channel 2)
  • Low, Mid, High EQ
  • Channel 1/Channel 2 Volume
  • Master Boost
  • Global Reverb, Resonance, and Presence
• Channels: Two - Clean/Overdrive and Lead/Burn
• Voltage: 120V (Also Available in 100V, 110V, 220V, 230V, 240V)
• Wattage: 40 Watts
• Effects: Reverb
• Effects Loop: 1/4" (Send/Return)
• Inputs: One - 1/4"
• Headphone Jack: None
• Line Out: Two - (One XLR and One 1/4")
• Speaker Jack: Two - 1/4" Parallel
• Rectifier: Solid State
• Total Impedance: 4, 8, or 16 ohms
• Amplifier Covering: Black Textured Vinyl
• Cabinet Material: MDF w/ Plywood Baffle
• Preamp Tubes: 2 x ECC83S
• Power Tubes: 2 x 6L6
• Speakers: One - 12" EVH® Celestion® Custom
• Speaker Wattage: 40 Watts
• Control Panel:
  • Channel 1: Gain w/ Overdrive Switch
  • Channel 2: Gain w/ Burn Switch
  • Noise Gate (Channel 2)
  • Shared Low, Mid, High EQ
  • Channel 1/Channel 2 Volume
  • Master Boost
  • Global Reverb, Resonance, and Presence
• Front Panel: Brushed Aluminum
• Effects: Reverb
• Other Features: 1/4 Power Level Switch
• Weight: 53 lbs. (24 kg)
