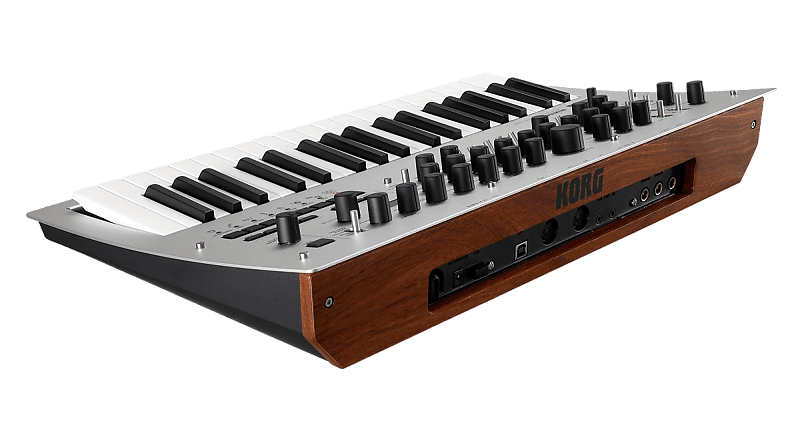

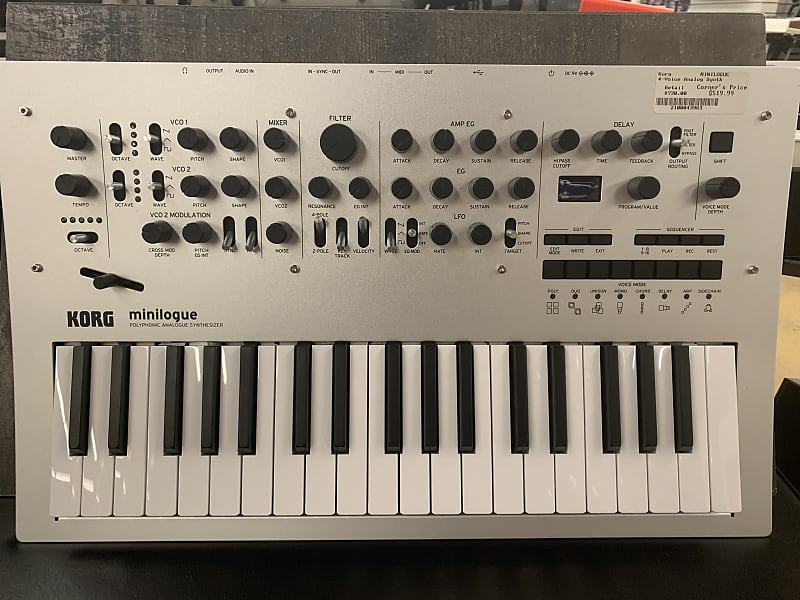

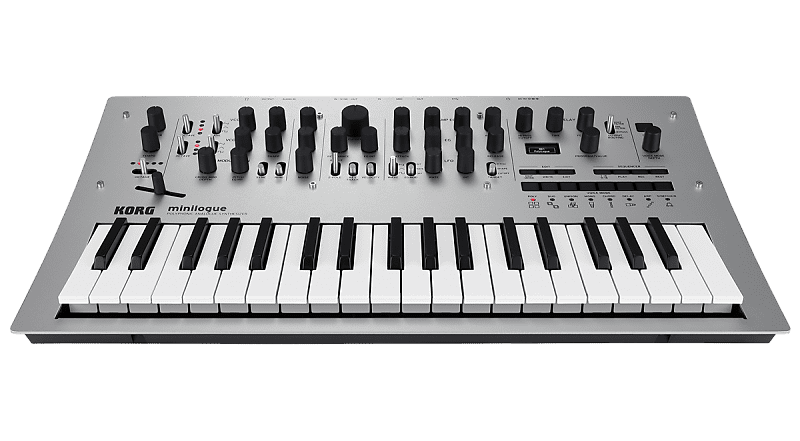

Korg Minilogue 4-voice Analog Polyphonic Synthesizer

It’s not hard to understand why the Korg Minilogue won “Best In Show” accolades at the 2016 NAMM show. A fully programmable, 2 VCO per-voice, 4-voice, polyphonic analog synthesizer with great sounds and features at a great price—how sweet is that?

The Minilogue offers 4 true-analog voices and an easy-to-operate interface, including 2 VCOs, 1 VCF, 2 EGs, 1 VCA, and 1 LFO so you can fine-tune harmonics and create killer sounds for days. An on-board oscilloscope display shows the waveforms as you build them, giving instant visual feedback and helping you associate waveforms with sounds.

200 preset locations (100 editable factory programs and 100 locations for new sounds) let you pull up sounds instantly. 8 voice modes let you assign the 4 voices for chords, pads, or thick, fat bass tones ... and on and on.

A 16-step sequencer lets you record and overdub phrases. MIDI and USB connectors make it easy to sync with other synths and outboard gear.

The Minilogue is versatile, well-laid-out, easy to jump into, generous with storage, and loaded with enough tone-sculpting features to give you a seemingly endless set of true-analog sounds—all at a very low price.

Features

• 37-keys (Slim-key, velocity sensitive)
• Analog synthesis sound generation
• 4 voice maximum polyphony
• 200 programs (100 Presets / 100 Users)
• Each program includes voice mode and sequence data settings
• Up to eight favorite programs can be registered
• 8 voice modes (Poly, Duo, Unison, Mono, Chord, Delay, Arp, Side Chain); VOICE MODE DEPTH can vary different parameters in each mode

Main Synthesis Parameters

• VCO1: Octave, Wave (Saw, Triangle, Square), Pitch, Shape
• VCO2: Octave, Wave (Saw, Triangle, Square), Pitch, Shape
• VCO2 Modulation: Cross Mod Depth, Pitch EG Int, Sync, Ring
• MIXER: VCO1, VCO2, Noise
• FILTER: Cutoff, Resonance, EG Int, Filter Type (2-Pole, 4-Pole), Keytrack, Velocity
• AMP EG: Attack, Decay, Sustain, Release
• EG: Attack, Decay, Sustain, Release
• LFO: Wave (Saw, Triangle, Square), EG Mod (Int, Rate, Off), Rate, Int, Target (Pitch, Shape, Cutoff)
• DELAY: Hi Pass Cutoff, Time, Feedback, Output Routing (Post Filter, Pre Filter, Bypass)

Additional Features

• 16-step polyphonic sequencer w/ motion sequence can be used on up to four parameters

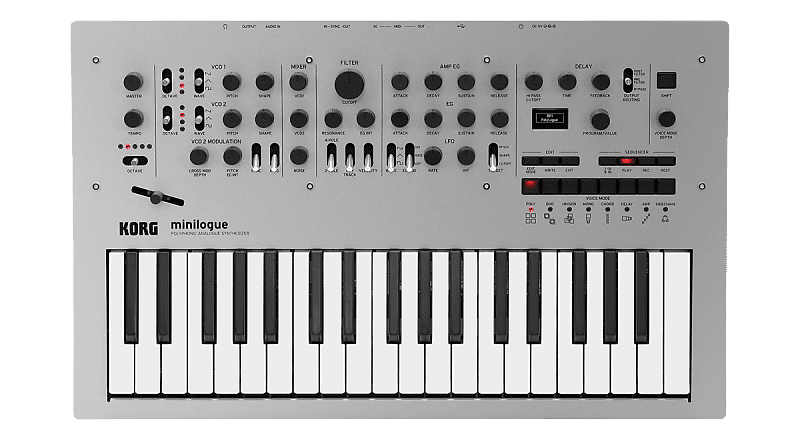

• 41 dedicated panel controls deliver immediate parameter access
• A slider can control different parameters for each program
• Real-time OLED oscilloscope display provides visual feedback of parameter changes

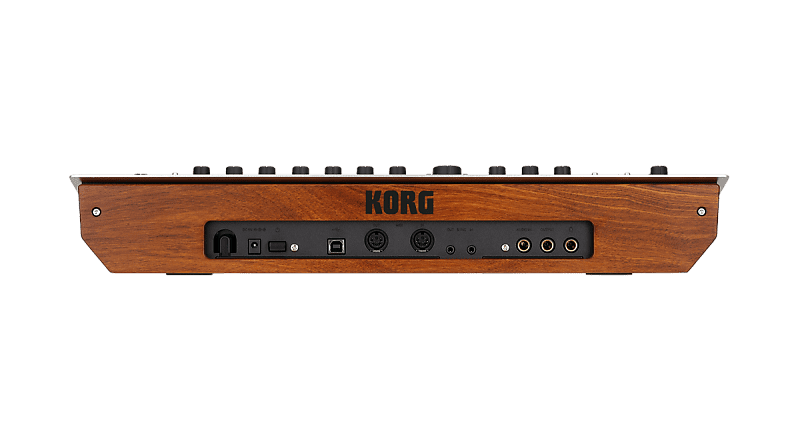

Connectors:
Headphones (6.3mm stereo phone jack)
Output (6.3mm monaural phone jack)
Audio In (6.3mm monaural phone jack)
Sync In (3.5mm monaural mini jack)
Sync Out (3.5mm monaural mini jack)
MIDI In
MIDI Out
USB Type B

• AC power adapter (DC9V) KA350
• 8W Power Consumption
• Dimensions: 19.69" W x 11.81" D x 3.35" H
• Weight: 6.17 lbs.
