Korg Minilogue XD Module - Floor Model

This is a floor model, but it is still technically brand new. We are required by Korg to list it at the full MAP price. Since it is out of the box, we will consider reasonable offers.

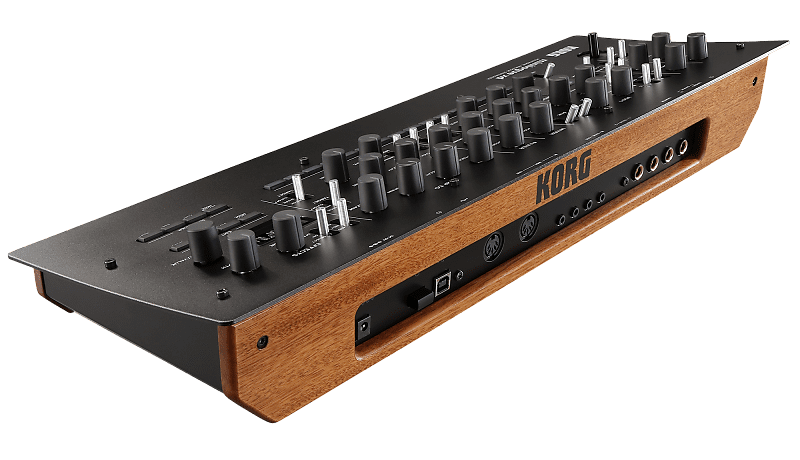

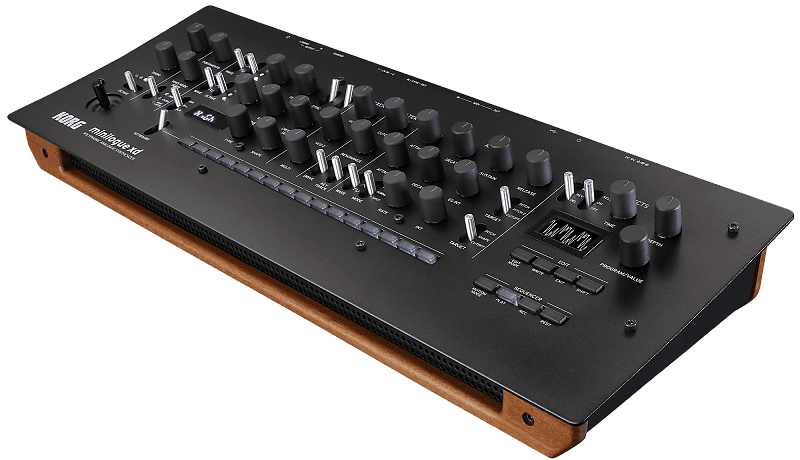

Korg’s minilogue xd is the desktop module version of Korg’s popular minilogue xd. It’s a 4-voice polyphonic analog synthesizer with a customizable digital multi-engine and built-in stereo digital effects. The controllers are identical to the keyboard version, allowing for easy expansion—especially to another minilogue unit—using the poly-chain function to access up to 8 voices.

The minilogue xd combines an analog synthesizer circuit with a digital multi-engine, featuring 2 VCOs, a MULTI ENGINE, 1 VCF, 2 EGs, 1 VCA, and 1 LFO. You can easily find all the sounds expected from an analog synth—biting leads, fat bass tones, silky pads, and more.

Add digital sounds generated by the multi-engine, which includes a third oscillator and 2 analog VCOs, providing tones that are very different from the analog, offering limitless tonal possibilities.

Minilogue xd's studio-quality (32-bit floating-point DSP) digital effects allow you to use modulation effects, reverb, and delay simultaneously to create your own ambience. You can even load your own effects into the minilogue xd’s 16 user effect slots and share sounds within the unit’s 16 user oscillator slots.

Other features include:

• 16-step polyphonic, editable step sequencer
• Polychain function for easy access to additional voices
• A free music software bundle

Features

• Sound Generation: Analog Sound Generator + Multi-Engine Digital Generator
• Polyphony: 4 Voices
• Programs: 200 Factory, 300 User, Built-in Favorite function
• Voices: 4 (Poly, Unison, Chord, Arp/Latch)
• Sequencer: 16-Step Polyphonic (use on up to 4 parameters)
• Arpeggiator: 6 Types (Manual, Rise, Fall, Rise Fall, Random, Poly Random)

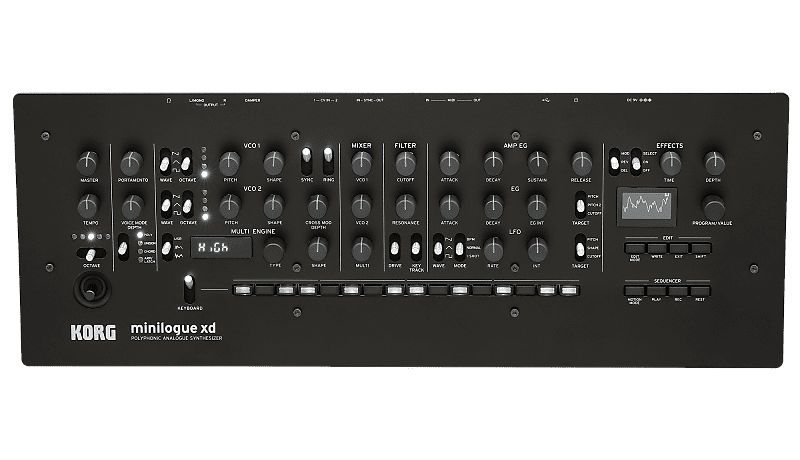

Synthesizer Structure:

• VCO1: Wave (Saw, Triangle, Square), Octave, Pitch, Shape
• VCO2: Wave (Saw, Triangle, Square), Octave, Pitch, Shape
• Modulation: Sync, Ring, Cross Mod Depth
• Multi-Engine: Noise/VPM/User, Octave, Type, Shape
• Multi-Engine Types:
• Noise Generator: 4 types
• VPM (Variable Phase Modulation) / FM Oscillator: 16 Types
• User Oscillator: 16 slots
• Mixer: VCO1, VCO2, Multi
• VCF: Cutoff, Resonance, Drive, Keytrack
• AMP EG: Attack, Decay, Sustain, Release
• EG: Attack, Decay, EG Int, Target (Pitch, Pitch2, Cutoff)
• LFO: Wave (Saw, Triangle, Square), Mode (BPM, Normal, 1-Shot), Rate, Int, Target (Pitch, Shape, Cutoff)

Effects:

• Mod Effects:
  • Chorus: 8 Types
  • Ensemble: 3 Types
  • Phaser: 8 Types
  • Flanger: 8 Types
  • User: 16 Slots
• Delay:
  • 12 Types
  • User: 8 Slots
• Reverb:
  • 10 Types
  • User: 8 Slots

Controls:

• Joystick: Modifies Parameters for Each Program
• Knobs: Portamento, Keyboard

Poly Chain Function: Two minilogue xd Units / Up to 8 Voices Polyphonically

Displays:

• Main: Real-Time OLED Oscilloscope displays Parameter Changes
• Multi-Engine Section: 7-Segment 6-Digit LED Display

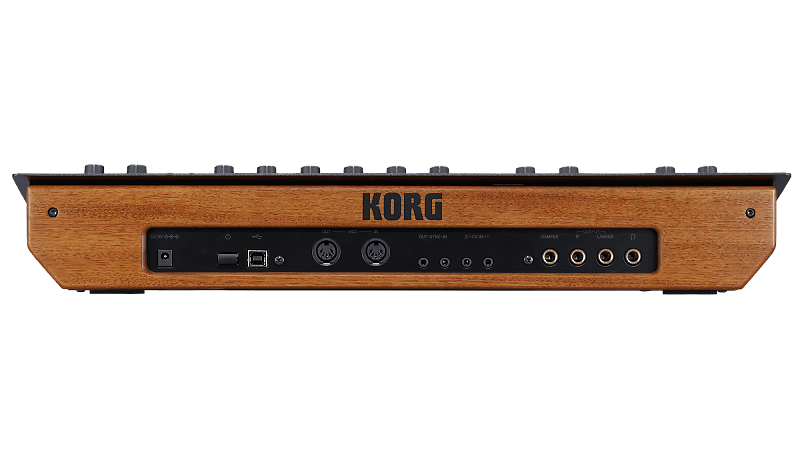

Inputs and Outputs:

• Audio:
• Headphone: Stereo 1/4" TRS
• Output (Left/Mono, Right): 2 x 1/4" TS
• Sync In: 1/8" (3.5mm) (Maximum Input Level 20 V)
• Sync Out: 1/8" (3.5mm) (Output Level 5 V)
• CV In: 2 x 1/8" (3.5mm)
• MIDI: USB Type-B
• TS MIDI I/O: 2 x 5-pin DIN
• Damper/Sustain Jack: 1/4" (6.35mm)

Control Voltage Inputs:

• CV Connector Voltages:
• Modulation Mode: -5 to +5 V
• CV/Gate Mode: -3 to +5 V

Power:

• 9 VDC Adapter
• Power Consumption: 8 W

Dimensions: 19.69” W x 7.05” D x 3.35" H

Weight: 5.73 lbs
