RME ADI 648 64-Channel MADI / ADAT Format Converter

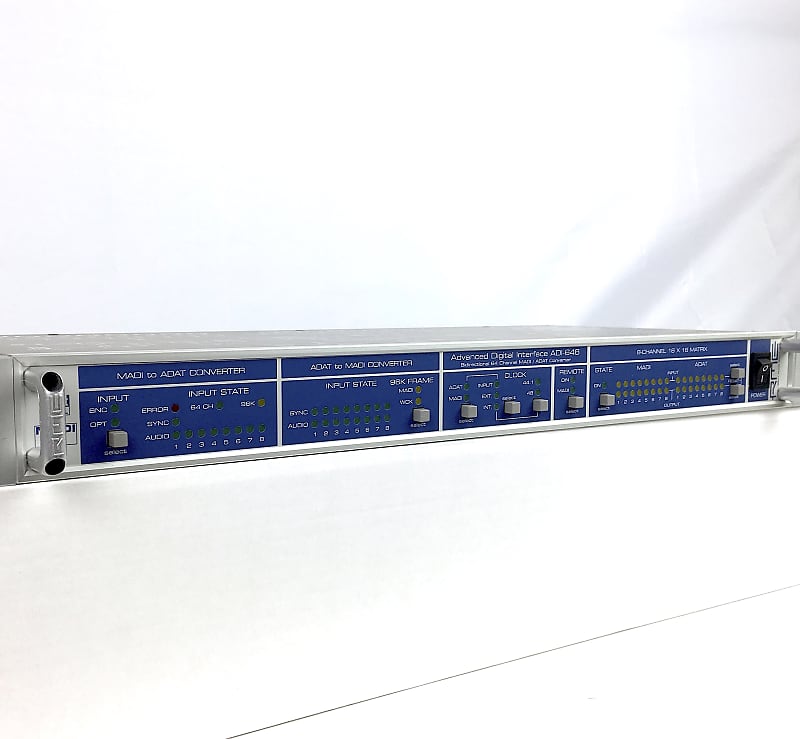

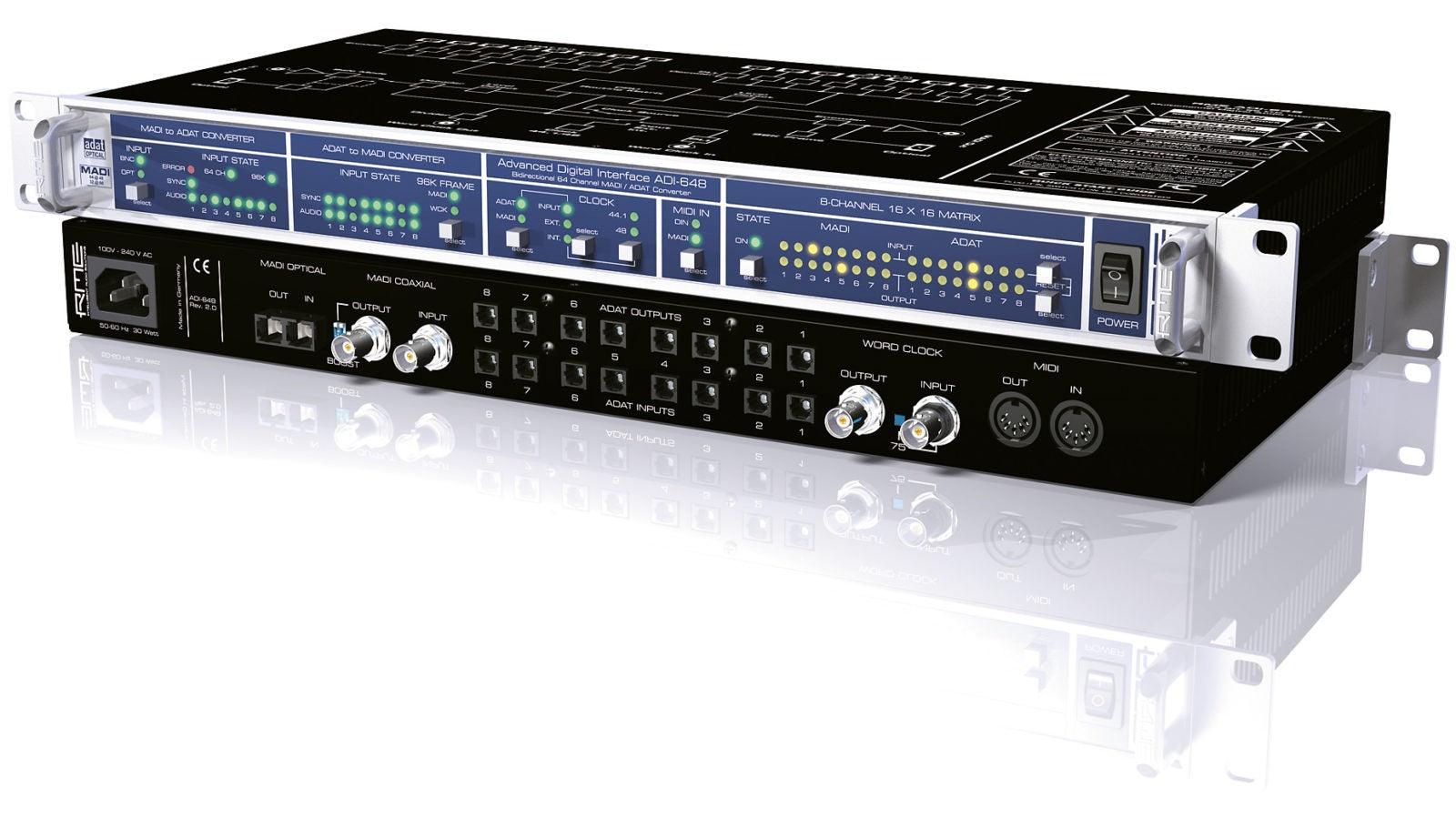

The ADI-648 is a bidirectional, 64-channel MADI/ADAT format converter. This compact multi-channel audio digital interface offers easy format conversion from MADI to ADAT and vice-versa. It combines the world‘s most successful multi-channel interface with RME’s exclusive high-end interface, allowing MADI channels to be sent to and from 8 ADAT optical inputs and 8 outputs via TOSLINK.

The ADI-648 contains an easy-configurable 8-Channel 16x16 Matrix Router. Any of the outputs, which are divided into 8-Channel blocks, can be fed from any 8-Channel input block, both on the ADAT and the MADI side. This allows free routing within the M-A and the A-M conversion, but also splitting and routing within the same format. An 8-Channel input block can be routed to any number of output blocks in parallel. Using more than one unit, several MADI signals can be combined to one (merging).

Application Examples:

• Managing long distances with a single cable
• ADAT breakout box for devices with MADI interface
• Connecting MADI-based equipment to RME's Hammerfall series
• ADAT optical patchbay and router
• MADI coaxial / optical or vice-versa converter and splitter
• MADI redistributor, patchbay and router
• MADI Merger

More from RME

The ADI-648 is compatible to all forms of increasing the sample rate (Double Speed). It supplies word clock in single or double speed, distributes 96 kHz signals in Double Wire mode into the MADI data stream, or per Sample Split (S/MUX) to the ADAT ports, but is also capable of double MADI rate (96k Frame). The ADI-648 thus also represents an ideal MADI front-end for the Hammerfall and Hammerfall DSP series.

SyncAlign ® and SyncCheck ®, technologies known from and proven by other RME products, allow for perfect sync between all channels and easy notification of error states. And of course multiple devices can be cascaded and synchronized sample-accurate using word clock. The ADI-648 accepts 56 channels, 64 channels and 96k frame at its input, and can be set to generate those formats at its output. This way the ADI-648 even serves as perfect interface between otherwise incompatible MADI devices!

The compact device with 19" width and 1HU has numerous further outstanding features, like Intelligent Clock Control (ICC) and storing of the settings. It's even possible to transmit 16 MIDI channels in parallel to all 64 audio channels. A fully automatic input selection between optical and coaxial input offers a useful redundancy mode for critical applications. Extensive status displays give information about Lock and Sync states, audio content and the physical quality of the incoming signal.

Talking about clock: The ADI-648 includes SteadyClock(TM), a digitally controlled clock, especially developed by RME for MADI operation. It allows for operation without an additional word or AES clock line. The reference clock is extracted in highest quality from the MADI signal itself.

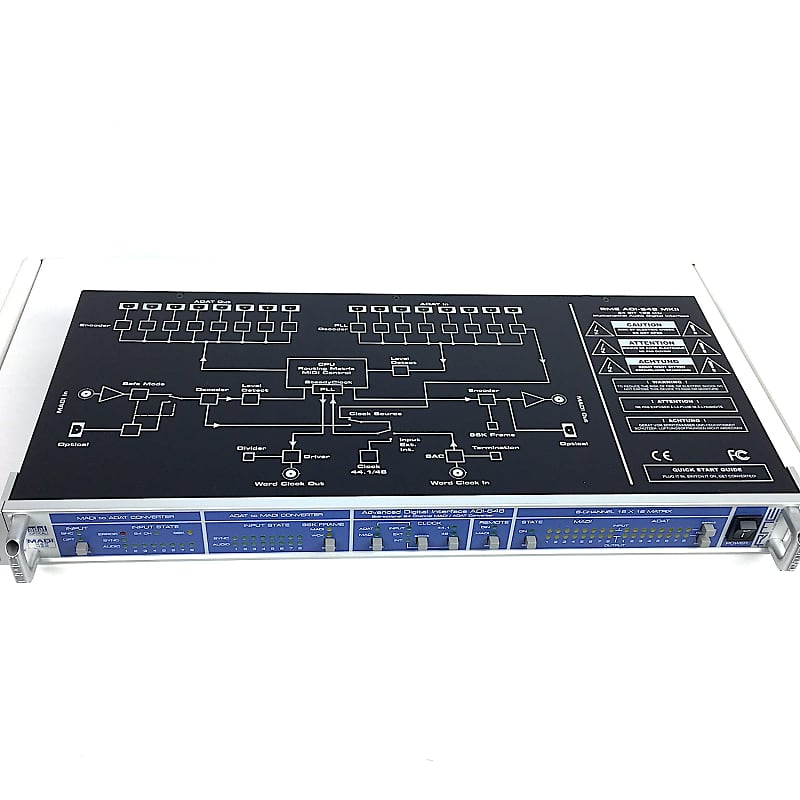

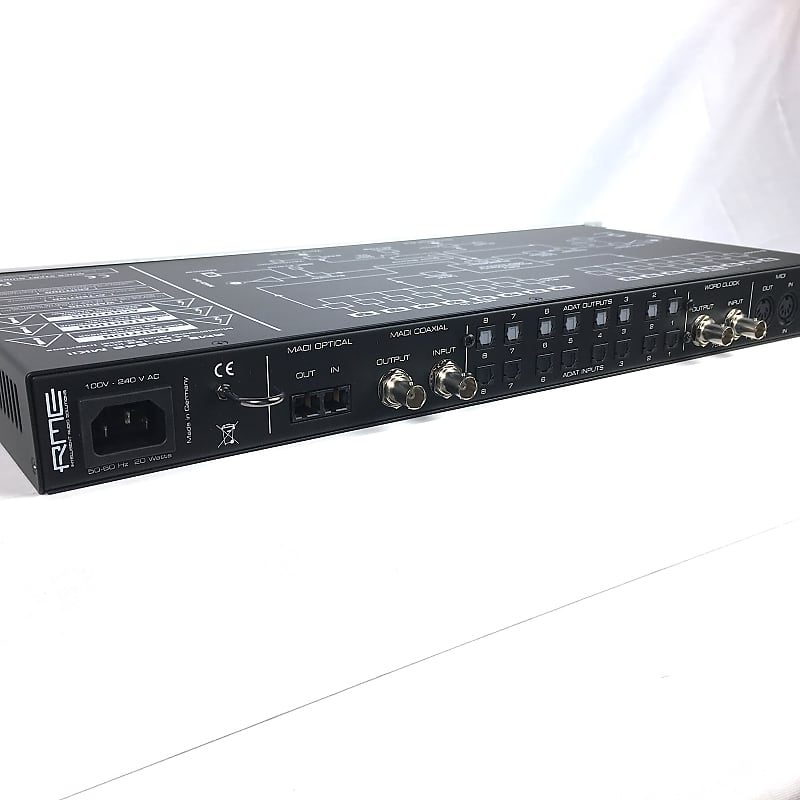

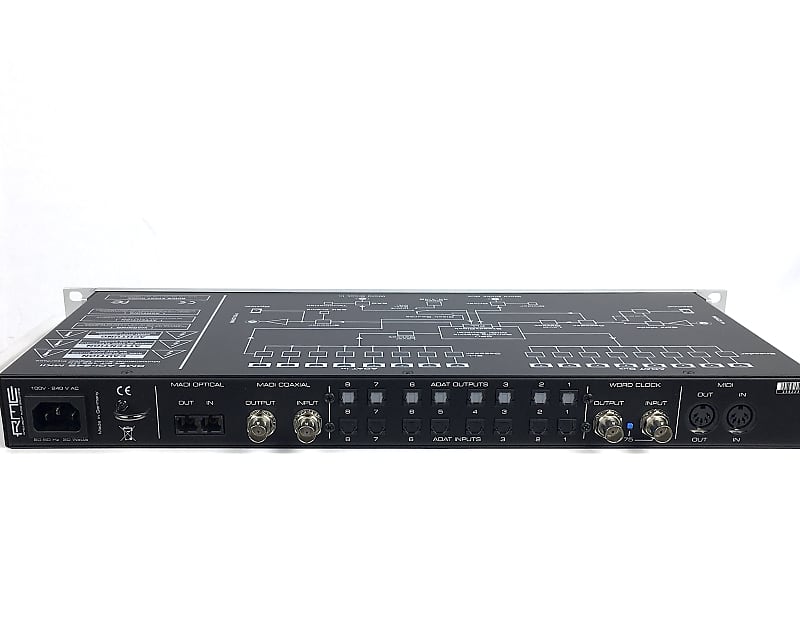

The rear of the ADI-648 looks clear and tidy. Eight ADAT optical inputs and outputs each, two MADI inputs and outputs each (coaxial, optical), word clock I/O (BNC) with switchable termination, and two DIN MIDI jacks offer unbeatable flexibility and compatibility.

The ADI-648 is compatible to MADI interfaces of companies like Sony, Merging, Lawo, Euphonix, Stagetec, Jünger, Audio Service, AMS and others.
