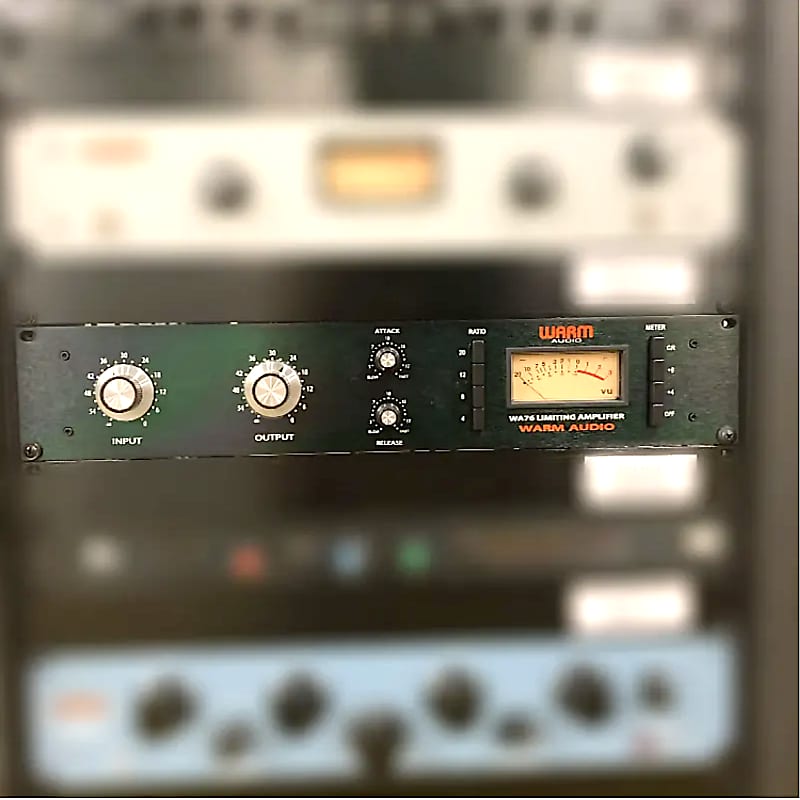

Warm Audio Discrete Compressor WA76
Warm Audio Discrete Compressor WA76
Regular price
$699.99 USD
Regular price
Sale price
$699.99 USD
Unit price
/
per
The Warm Audio WA76 Limiting Amplifier is a modern reproduction of the Classic 1176 Revision D with discrete signal path. Every effort was made to remain faithful to the original designs, including the use of Reichenbach Engineering's (now CineMag) transformer designs that were used in the original.
The classic 1176 was a major breakthrough in limiter technology — the first true peak limiter with all transistor circuitry offering superior performance with a signature sound - and set the standard for all limiters to follow.
Features:
- True to the Classic 1176 compressor in design and performance
- Completely discrete signal path
- Modeled after the D revision
- Utilizes USA-made CINEMAG input and output transformers
- Supports the famous "all buttons in" ratio setting
- Ultra fast attack time
- Class A line level output amplifier
Specifications:
- Input impedance - 600 ohms, bridges-T control (floating)
- Frequency Response +/- 1 dB 20 Hz to 20kHz
- XLR and TRS inputs; XLR and TRS outputs
- 55dB of gain
- Less than 0.4% total harmonic distortion from 50 Hz to 20 kHz with limiting
- Signal to noise ratio is greater than 74 dB at +25 dBm
- EIN -104.1 dBm
- Attack time: 20 microseconds to 800 microseconds
- Release time: 50 milliseconds to 1 second
- Meter provides dB gain reduction and dB output
- Internal power supply, external 24v AC power transformer
- 19" Rackmount chassis, 2U
- 1-year warranty
- Shipping Weight: 10 lbs
- Shipping Dimensions: 24 x 10 x 6 in
Low stock: 2 left
